products · the modular stack

Hardware that composes.

One real-time EtherCAT bus, one control API. Motion, power, sensing and batteries, designed to snap together into a complete robot, or to drop into yours.

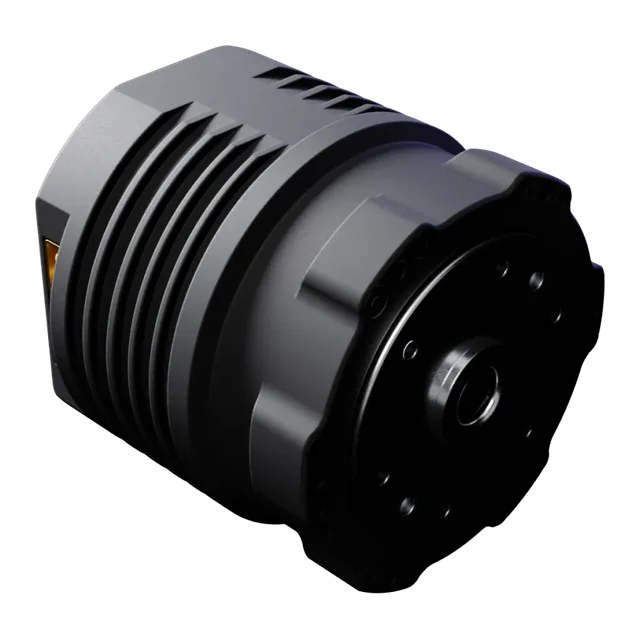

01 co:act

Integrated actuators.

Quasi-direct-drive actuators with the motion controller built in. One housing, one EtherCAT node, ready to bolt into a joint.

co:act 60 mm · 420 g Coming soon

Drive

Quasi-direct drive with a hollow shaft and a 16:1 reduction ratio.

Torque

10 Nm continuous, 25 Nm peak.

Form factor

60 mm diameter at 420 g. Multiple sizes coming soon.

Dual encoder

Motor-side and output-side position out of the box.

Controller built in

Everything from the co:motion board: real-time EtherCAT, BiSS, SSI, SPI, Hall and incremental encoders, simultaneous torque, velocity and position control, and safe stopping.

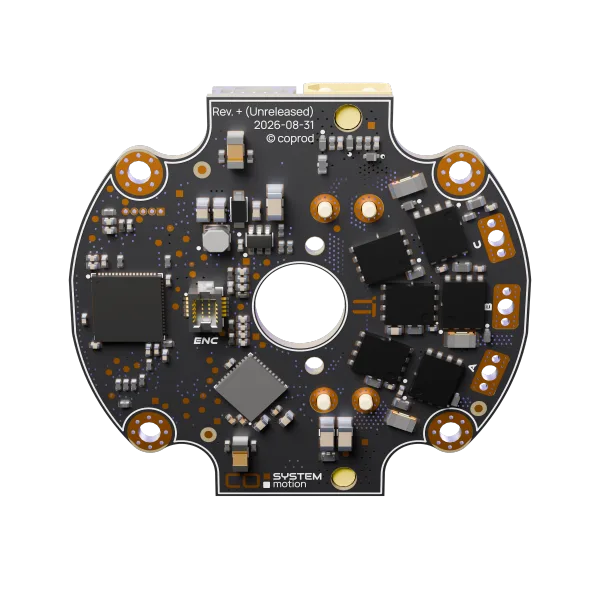

02 co:motion

Motion controllers.

Real-time EtherCAT motion controllers for high-performance joint control. Deterministic loops, rich feedback, and safety where it matters.

co:motion EtherCAT · DC sync
Pre-order →

Bus & timing

EtherCAT for 1 kHz+ real-time communication with distributed clocks.

Mechanical fit

Multiple sizes with hollow-shaft options for straightforward integration into robotic joints.

Feedback interfaces

BiSS, SSI, SPI, Hall, and incremental encoders, on- or off-axis configurations.

Motion modes

Simultaneous control of torque, velocity, and position.

Safe stopping

Controlled braking for safe emergency stopping. A Safe Torque Off module is coming.

03 co:power

A modular power system.

Precharge, regulate, dump and supervise. On a motherboard you configure. Pay only for the topology you need.

co:power Complete module
10-54.6V · EtherCAT 1kHz+ Submodules on one motherboard
Pre-order →
submodules

Compose only what your robot needs. Submodules interlock on a motherboard that you can configure, or order fully custom.

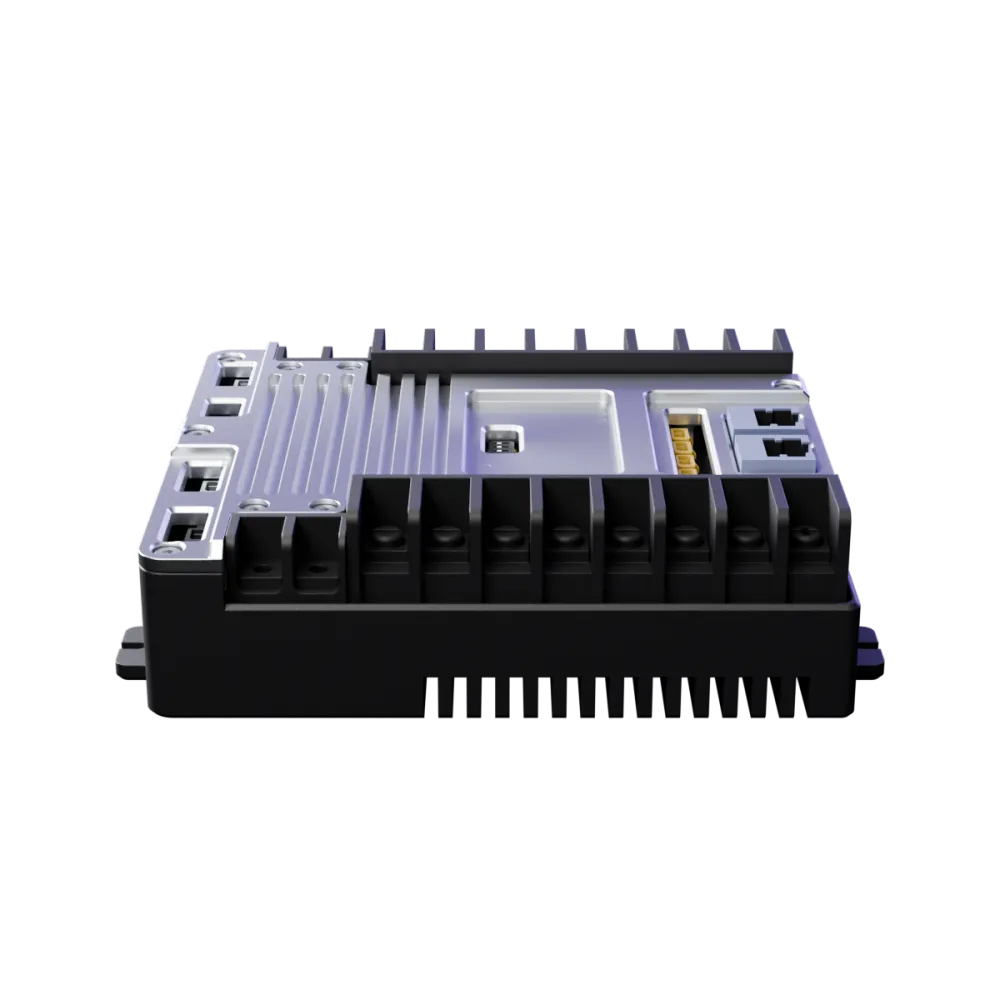

  1. 00 Complete co:power module
    Complete module
    The assembled system
    The full stack in one sealed unit: motherboard, submodules and cooling.

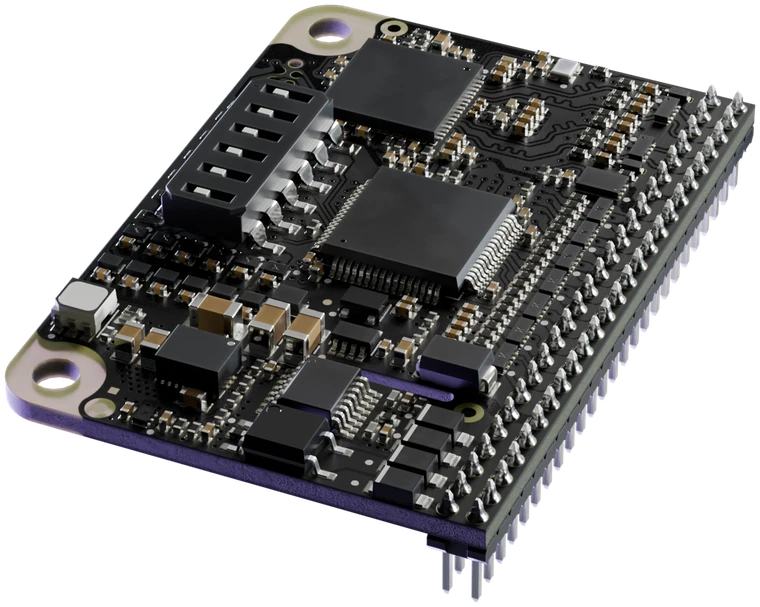

  2. 01 Power Logic
    Power Logic
    Supervisor & safety
    Top-level power supervisor: monitoring, fault detection, e-stop and bus-off handling.

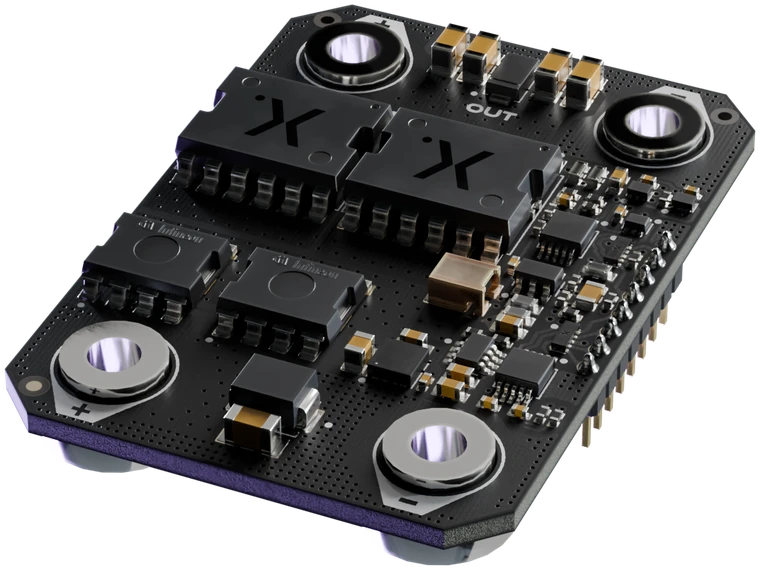

  3. 02 Precharge
    Precharge
    Bus inrush control
    Controlled soft-start to charge downstream capacitors.
  4. 03 Regulator
    Regulator
    Voltage regulation & isolation
    Wide-input galvanically isolated DC/DC converter with extensive protection and telemetry.
  5. 04
    Brake
    Regen clamp
    Active brake chopper for handling regenerative energy during deceleration.

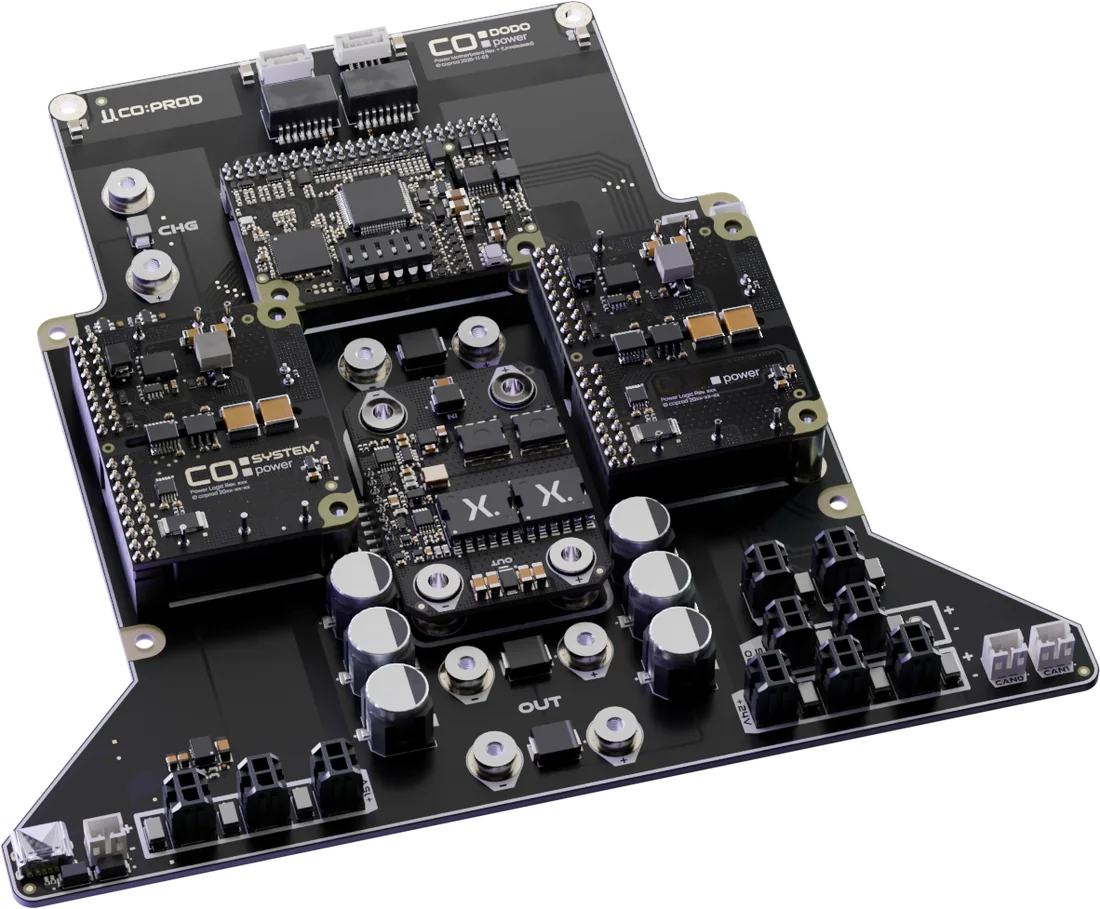

  6. 05 Motherboard
    Motherboard
    Configurable backplane
    Carries and interconnects co:system power submodules. Customizable for your system topology.

Composable

Up to 6 submodules. Stack only what the robot needs.

Native on the bus

Every submodule reports telemetry over EtherCAT. Same clock as motion and sensing.

Custom motherboards

Custom mechanical and electrical variants for your platform, on request.

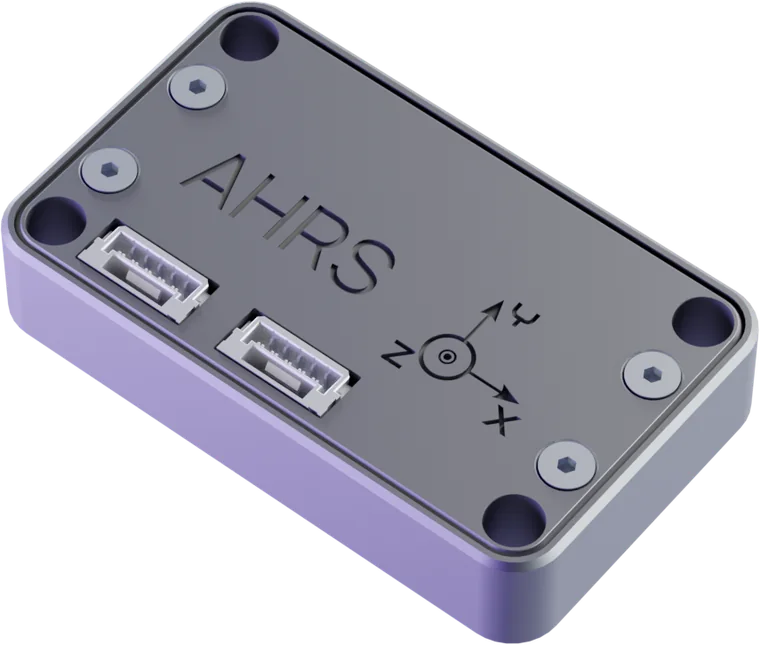

04 co:sense

Sensing, synchronized.

A compact EtherCAT 9-axis AHRS for precise orientation estimation. Dual-redundant sensing, on-board fusion, and hardware time-stamping on the bus so fusion and control share one clock. More sensor modalities on the way.

co:sense · imu ethercat native
Pre-order →

Sensing core

9-axis dual-redundant IMU.

Real-time link

EtherCAT for 1 kHz+ communication with distributed clocks.

On-board fusion

1 kHz state-of-the-art sensor fusion on the module.

Outputs

Quaternion, linear acceleration, angular velocity, and magnetic field.

Footprint

30 × 50 mm. Built to tuck into tight spaces.

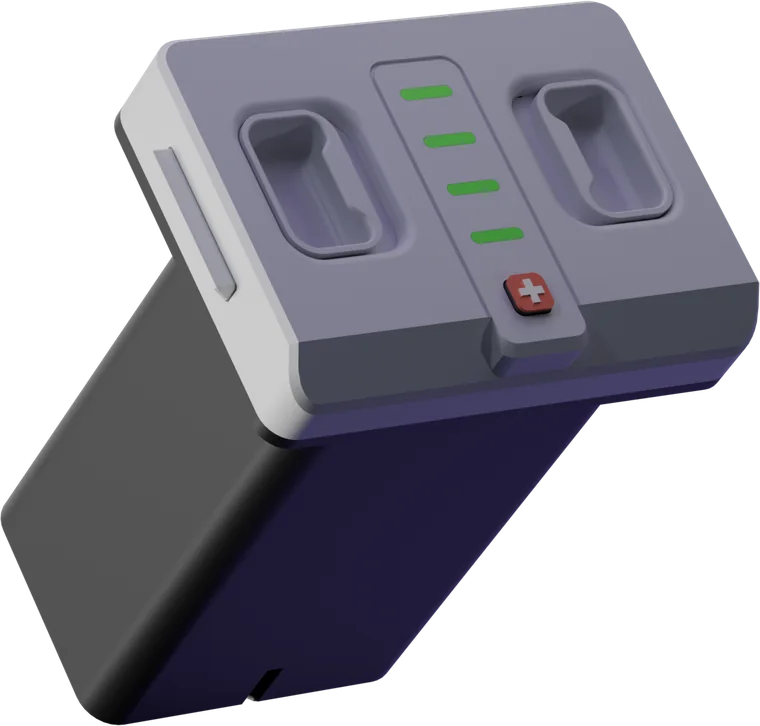

05 co:battery

Robot-ready battery packs.

Fully integrated batteries for your next robot. Onboard protection, state-of-charge indication, and mechanical integration that matches the rest of co:system.

co:battery onboard protection co:battery pack
Pre-order →

State of charge

Four illuminated state-of-charge indicators.

Protection

Over-current, over/under-voltage, short-circuit, and temperature protection.

Integration

Latching interface with open-source integration examples.

Product range

Multiple sizes and voltages; custom designs on request.

06 roadmap

What comes next.

We build what our own robots need. These are already in the pipeline.

planned

EtherCAT Junction

Passive and active junctions for robust star/branch topologies.

planned

IO Board

General digital / analog IO, fast sampled, time-stamped on the bus.

planned

Tactile Sensor

High-bandwidth tactile array for contact-rich manipulation.

systems

co:dodo built with co:system.

co:system · biped built on co:system Biped robot built with coprod

Our bipedal robot built on co:system.

  • Fast development.
  • Deterministic whole-body control over EtherCAT.
  • Hardware iterated in-house.
See systems →
